Application Scenarios

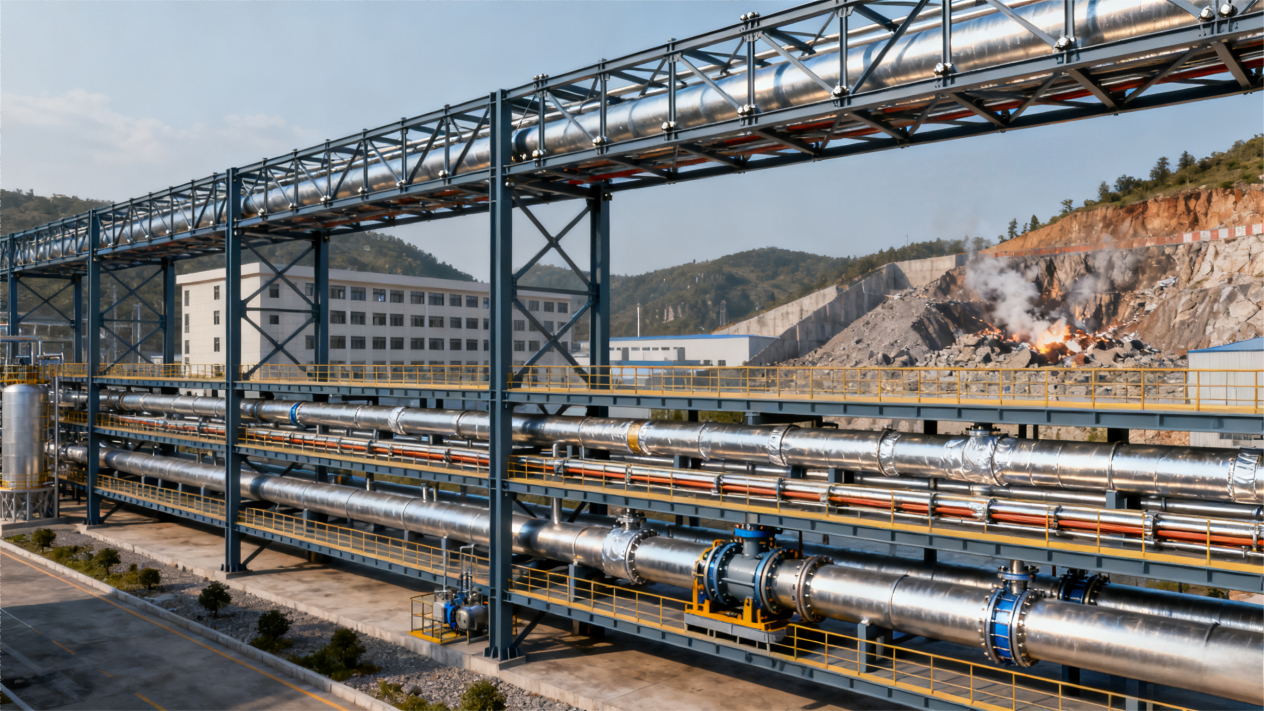

Mining Industry
Suitable for: Slurry & tailings pipeline layout (DN50-DN600)
High-hardness wear-resistant liners (wear loss ≤0.1mm/1000h), resists mineral particle abrasion, reduces pipeline replacement frequency
Reinforced steel structure, bears solid-liquid mixed media weight
Open design, enables easy pipeline joint inspection, ensures continuous mining production

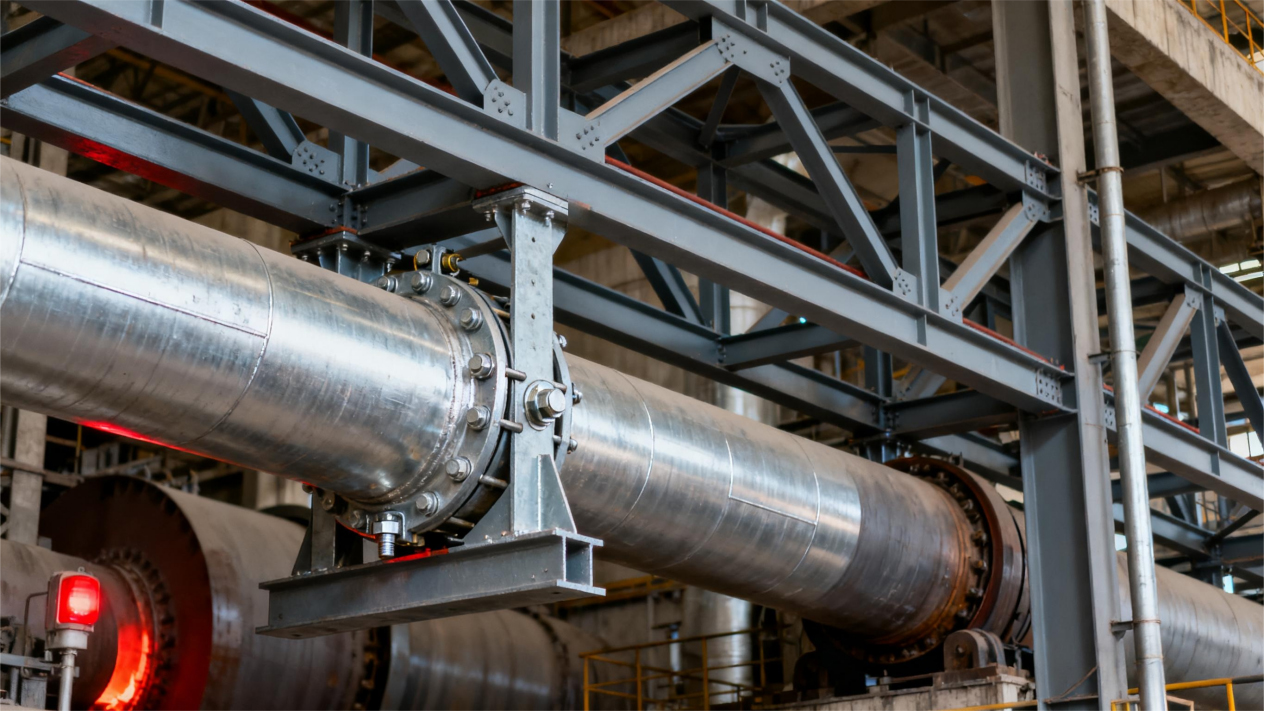

Cement Industry
Suitable for: High-temperature hot air pipelines (≤350℃), raw material conveying pipelines
Steel frame with high-temperature resistant coating (no peeling at 400℃), resists long-term thermal aging
Sealed joint design, prevents dust accumulation and structural part erosion
Solves pipeline blockage & structural corrosion, reduces maintenance costs by 30%

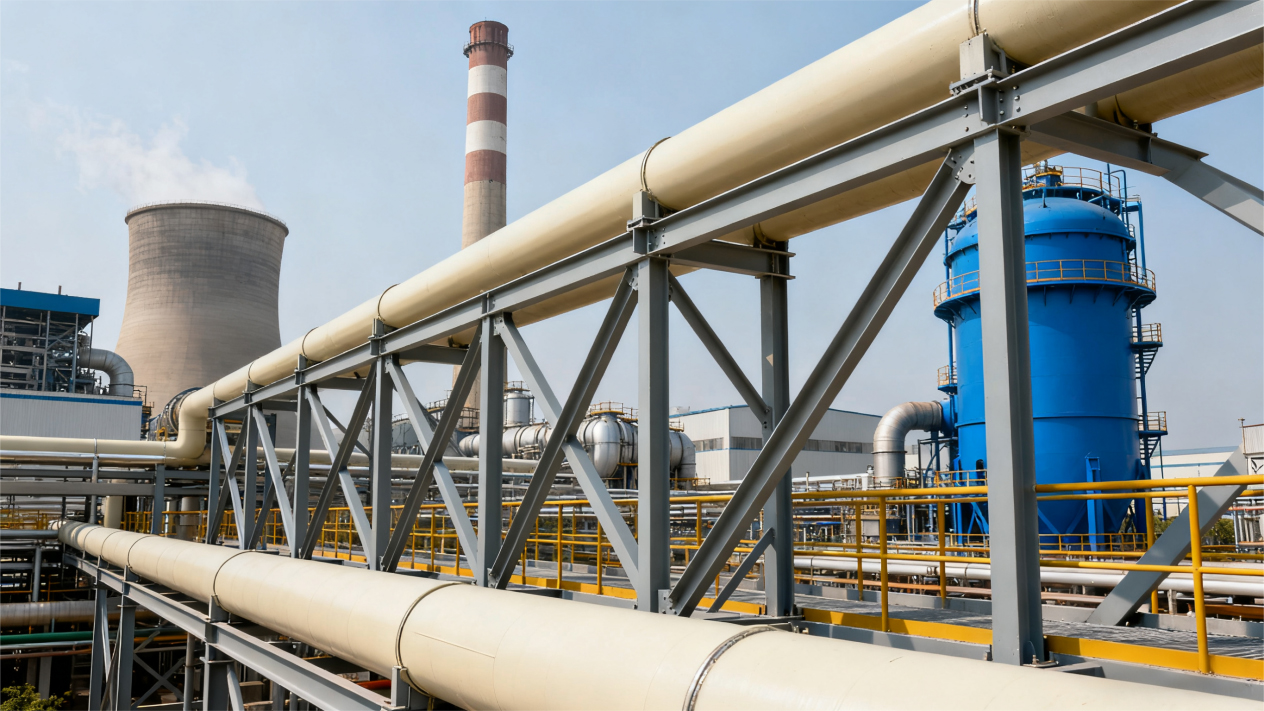

Power Plant
Suitable for: Desulfurization, denitrification, steam pipelines
Seismic grade ≥Level 6, anti-corrosion surface treatment (epoxy + polyurethane coating, salt spray resistance ≥800h), resists desulfurization wastewater and flue gas corrosion
Structure accommodates high-temperature pipeline thermal expansion (displacement compensation ≤50mm), ensures safe operation under extreme temperature changes

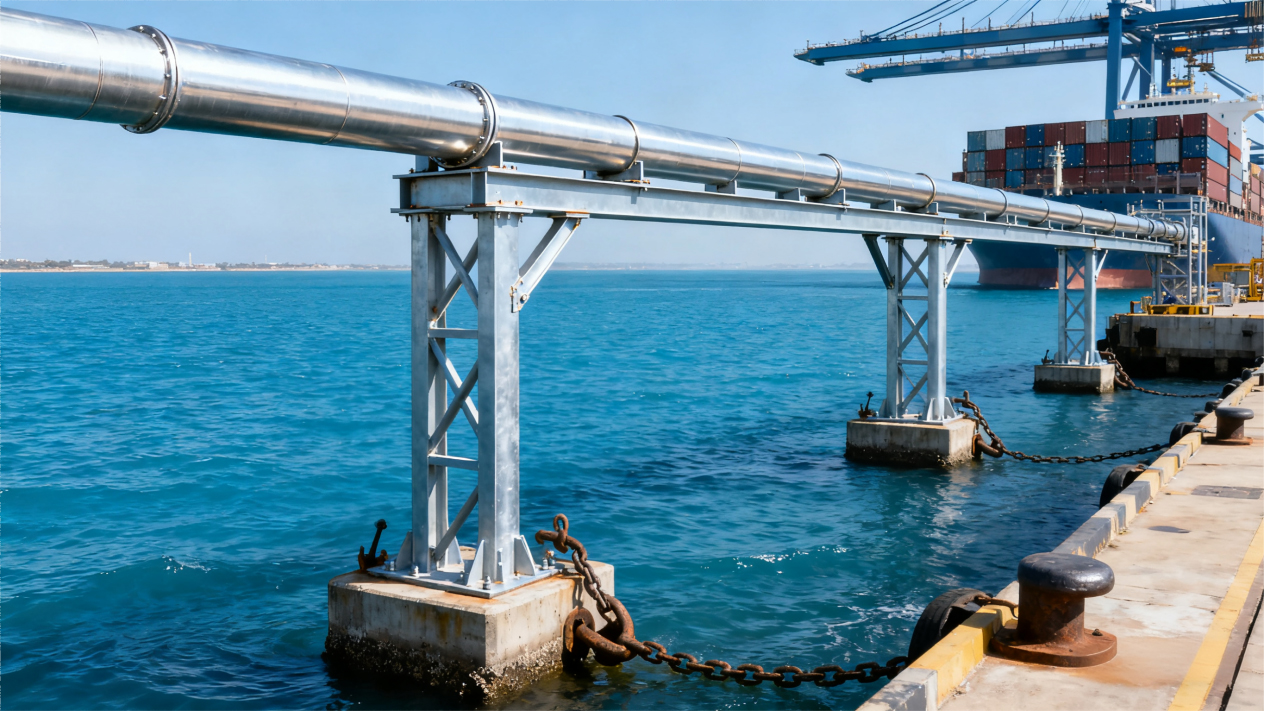

Port & Terminal
Suitable for: Seawater cooling pipelines, oil/gas transfer pipelines
316 stainless steel or hot-dip galvanizing + fluorocarbon coating, resists salt spray corrosion (service life ≥25 years in coastal areas)
Wind resistance rating ≥Level 12 (withstands wind speeds ≤50m/s), prevents typhoon-induced structural damage
Modular design fits narrow port spaces, avoids conflicts with loading/unloading equipment

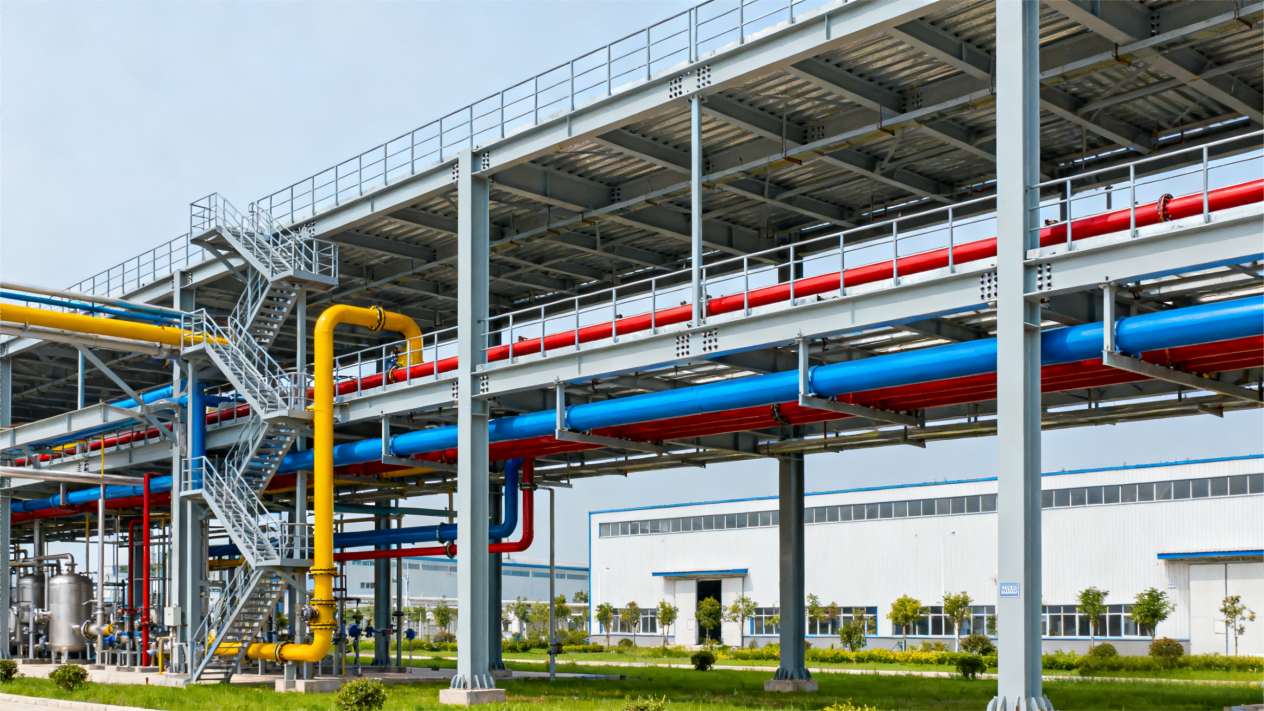

Industrial Park
Suitable for: Centralized pipeline artery (water supply, steam, compressed air, process pipelines) for multi-factory shared utilities
Multi-layer frame design (1-5 layers), saves 60% ground space
Layered labeling for clear pipeline classification (e.g., red for steam, blue for water)
Supports flexible expansion, adds new pipelines without dismantling existing structures, reduces infrastructure upgrade costs
Structure & Accessories

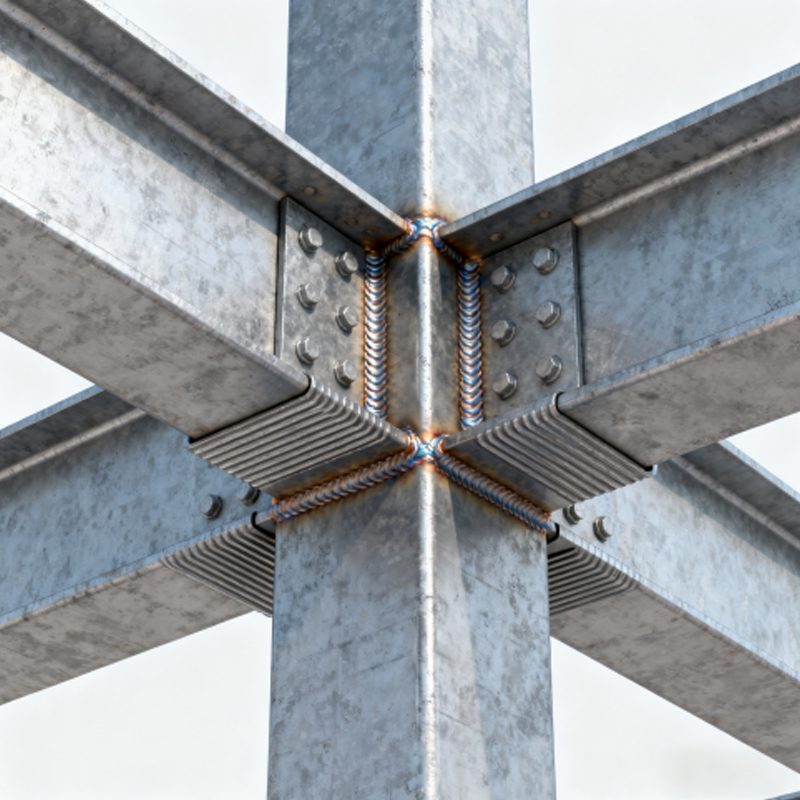

Main Structure

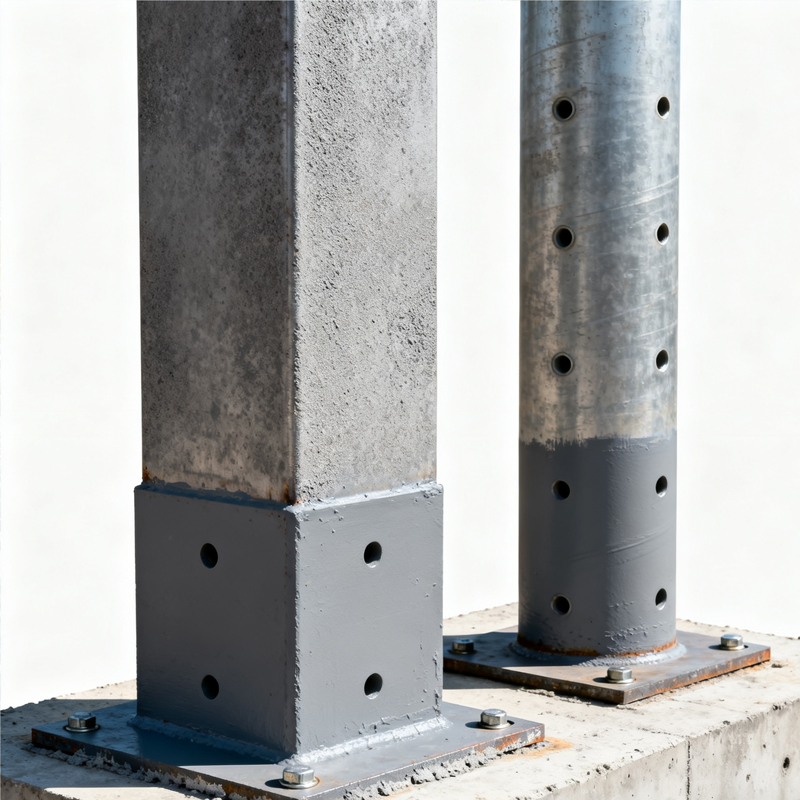

Columns:Square/round steel tubes for vertical support;

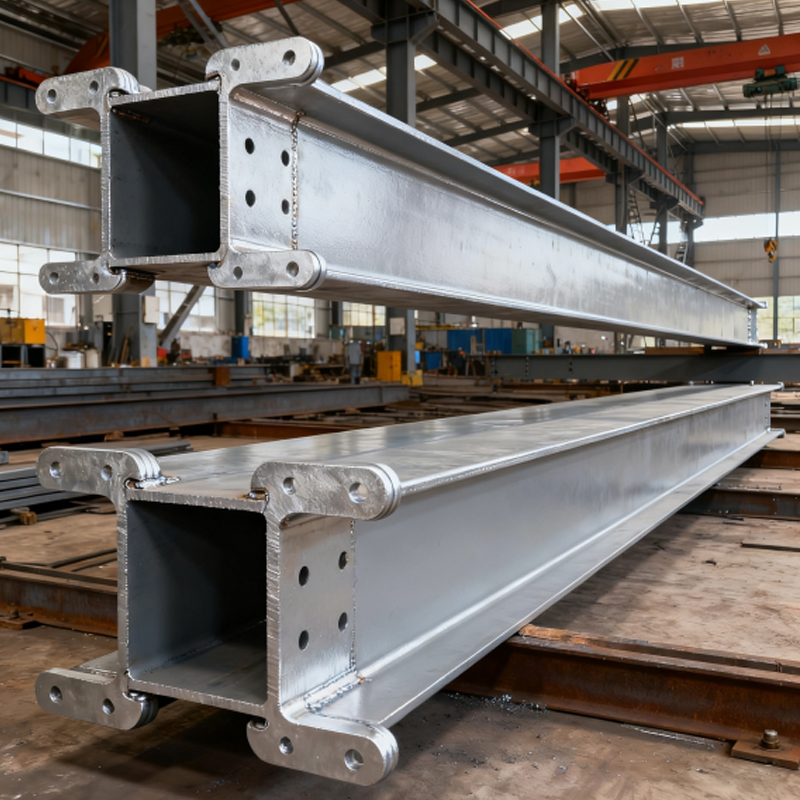

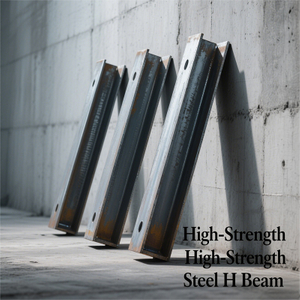

Beams:I-beams/H-beams for horizontal load-bearing;
Crossbars:Angle steel for fixing pipelines and enhancing stability.
Optional Accessories

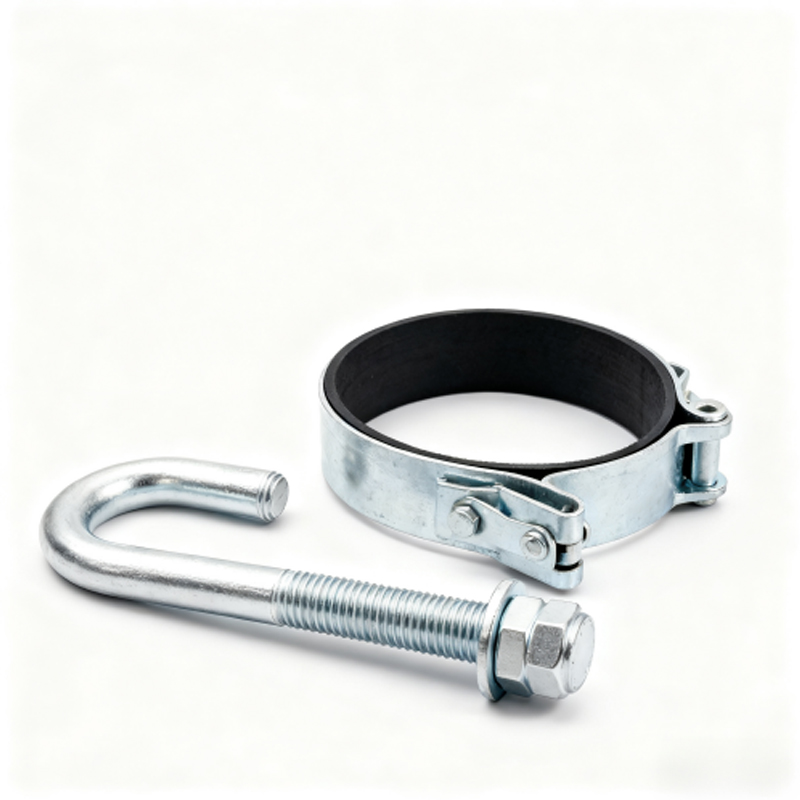

Pipeline clamps (U-bolts, band clamps) for securing different pipe diameters;

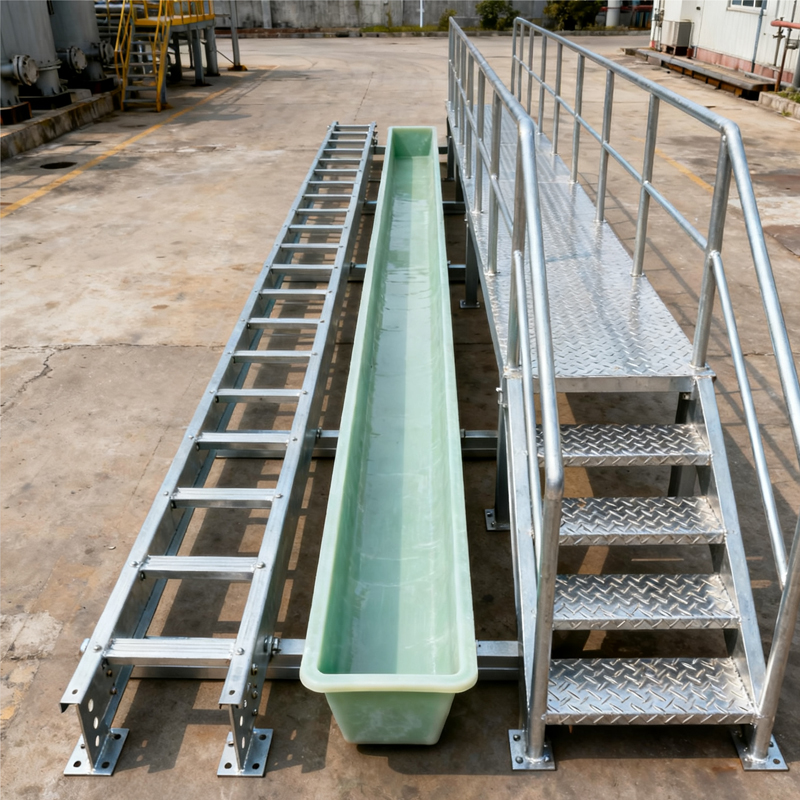

Cable trays (steel/FRP) for integrated cable laying;

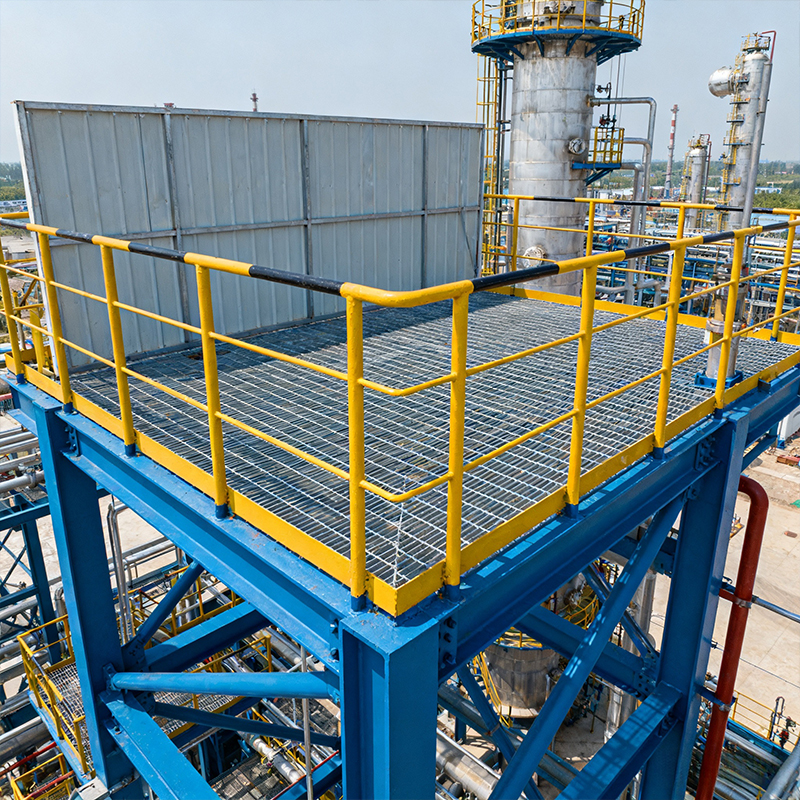

Ladder platforms (for regular inspection of upper-layer pipelines);
Drainage holes (to prevent rainwater accumulation on the rack);
Anti-slip pads (for pipeline vibration reduction).
 |  |  |
 |  |
