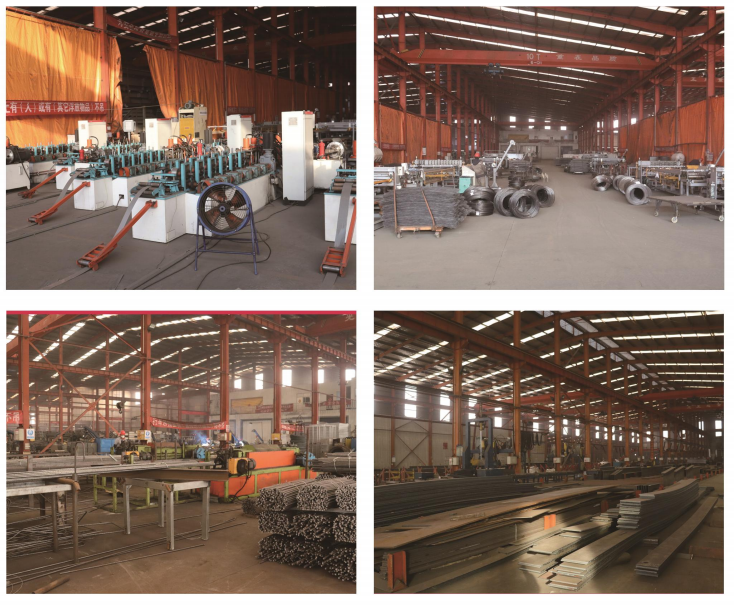

Manufacturing
6 Major Production Plants
5400 The annual output of cage net is 5400 tons
3000 The annual output of the framework is 3000 tons
15000 Field annual output 15000 tons
40000 The annual output of steel structure 40000 tons
Research and Development：
600-mu breeding experimental base (1 mu ≈ 0.0667 hectares)
Automated breeding training, data collection & database establishment
Optimize breeding plans via laboratory houses; ensure equipment advancement
Provide user support: equipment selection, correct usage & maintenance guidance
Adopt magnesium-aluminum-zinc alloy plates for insulation; verify decontamination & corrosion resistance
Analyze heating system economy (solar, air energy, boiler heating modes)
Conduct multi-phase breeding comparisons

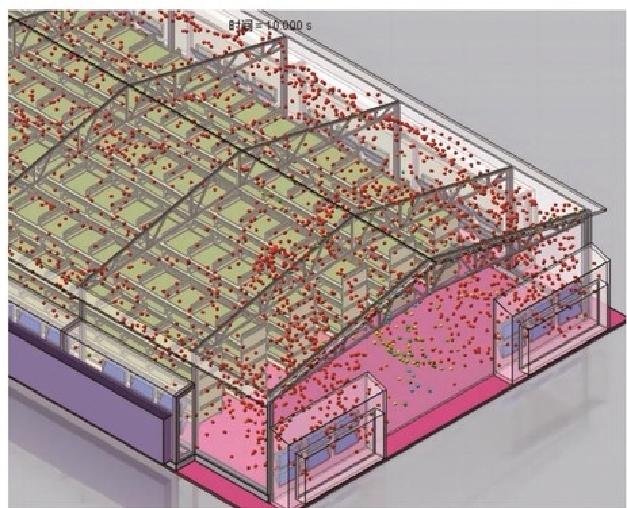

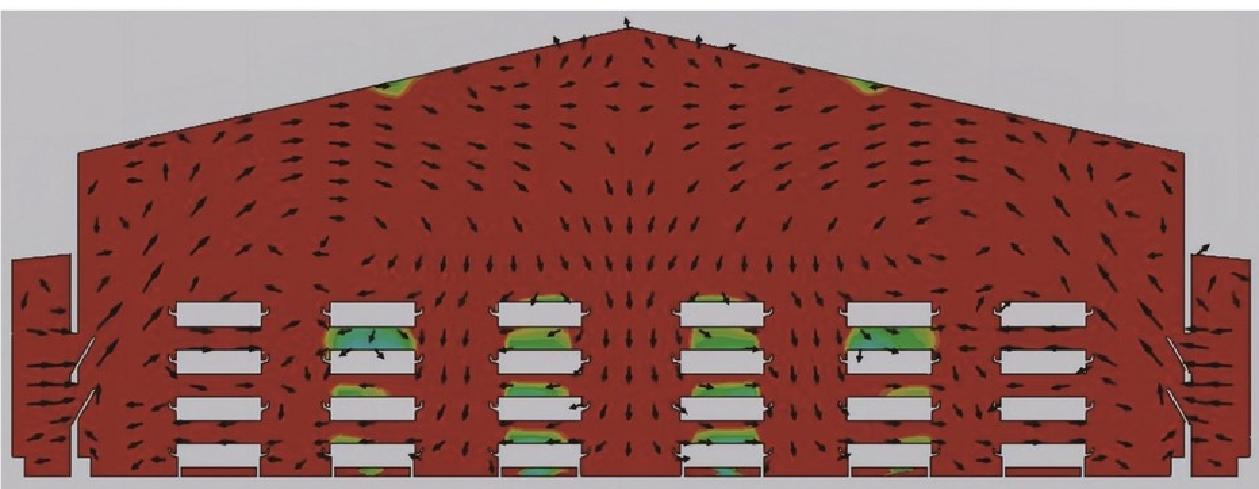

Complete minimum ventilation system validation & fan justification
 |  |  |
Livestock Farming Whole House System

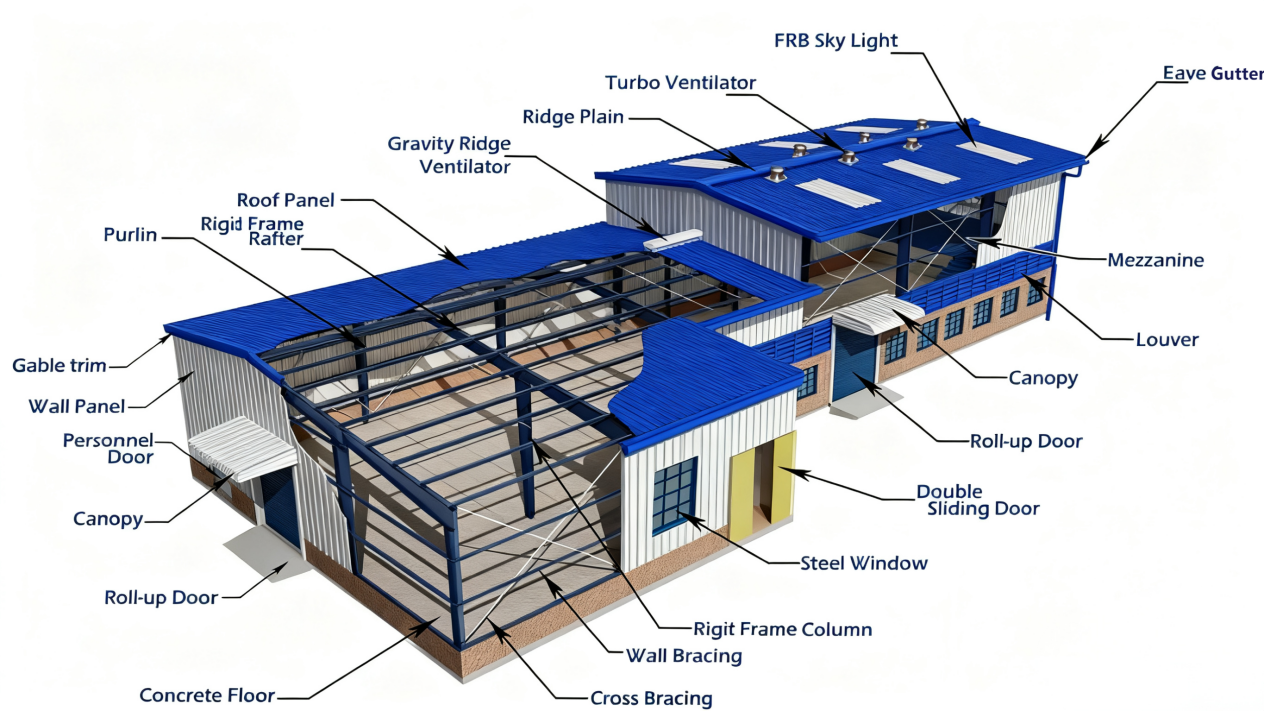

Technical Parameters

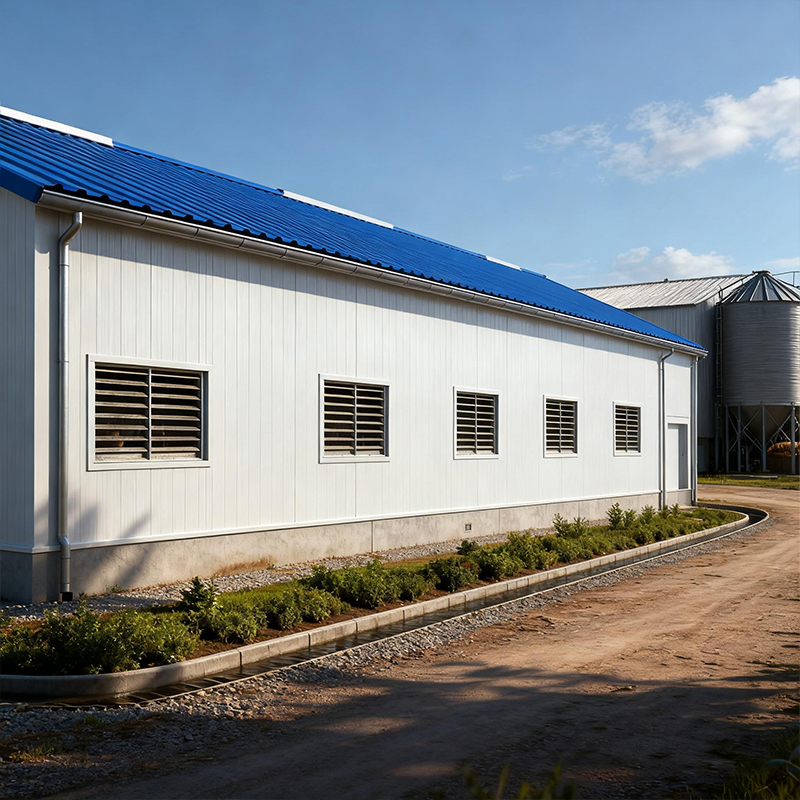

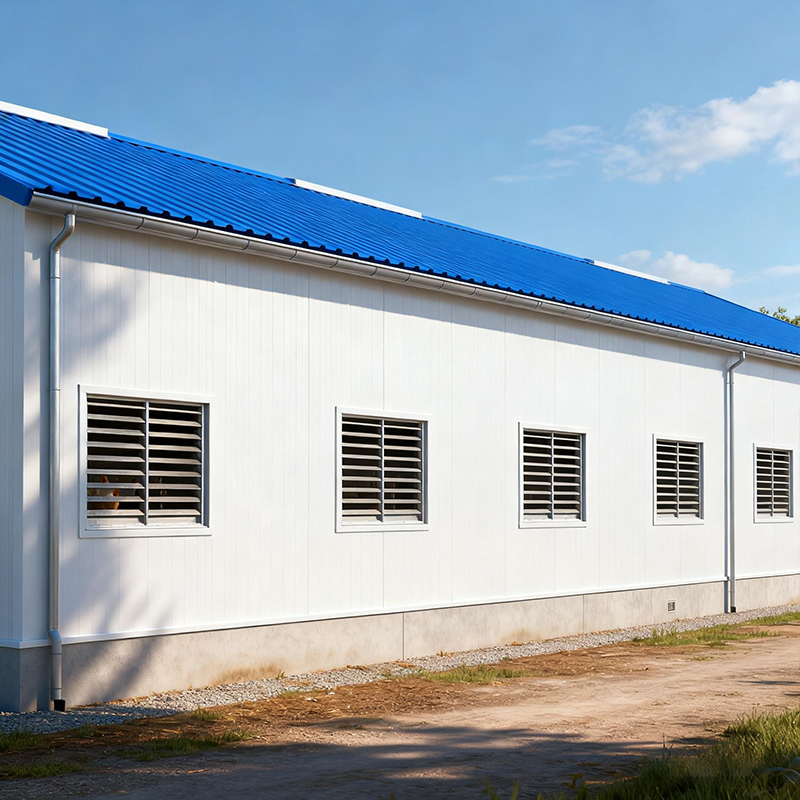

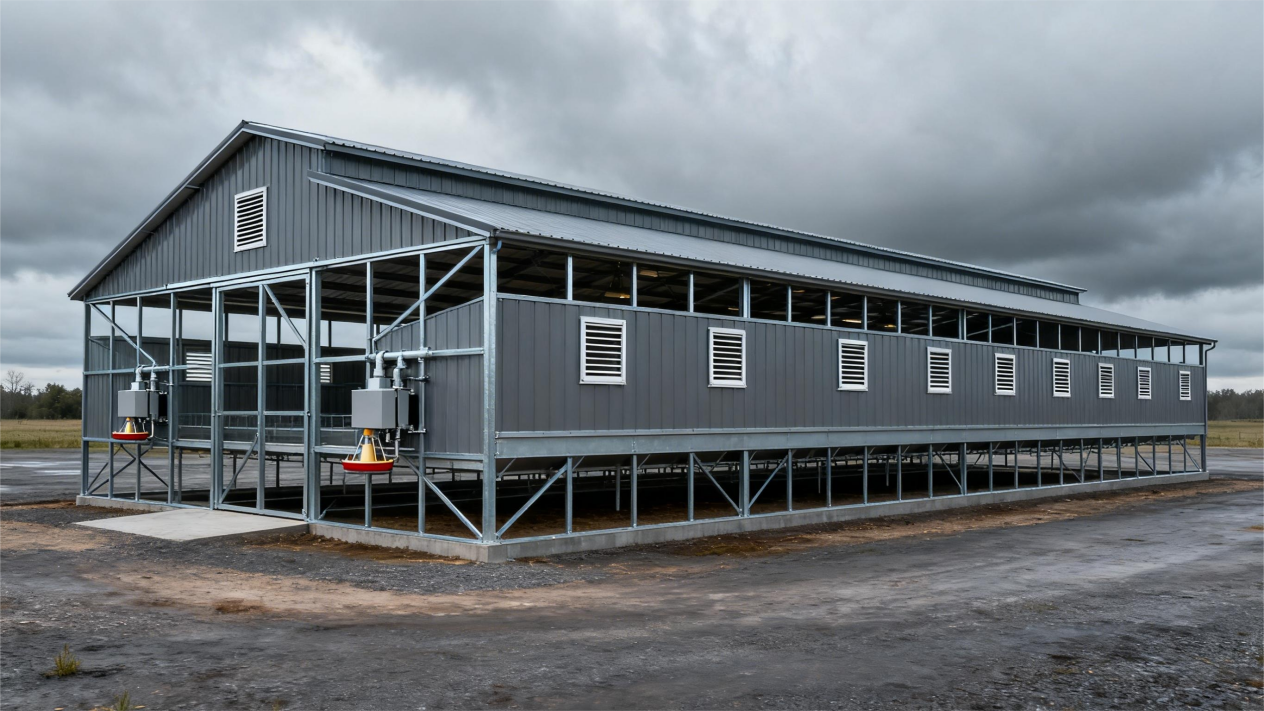

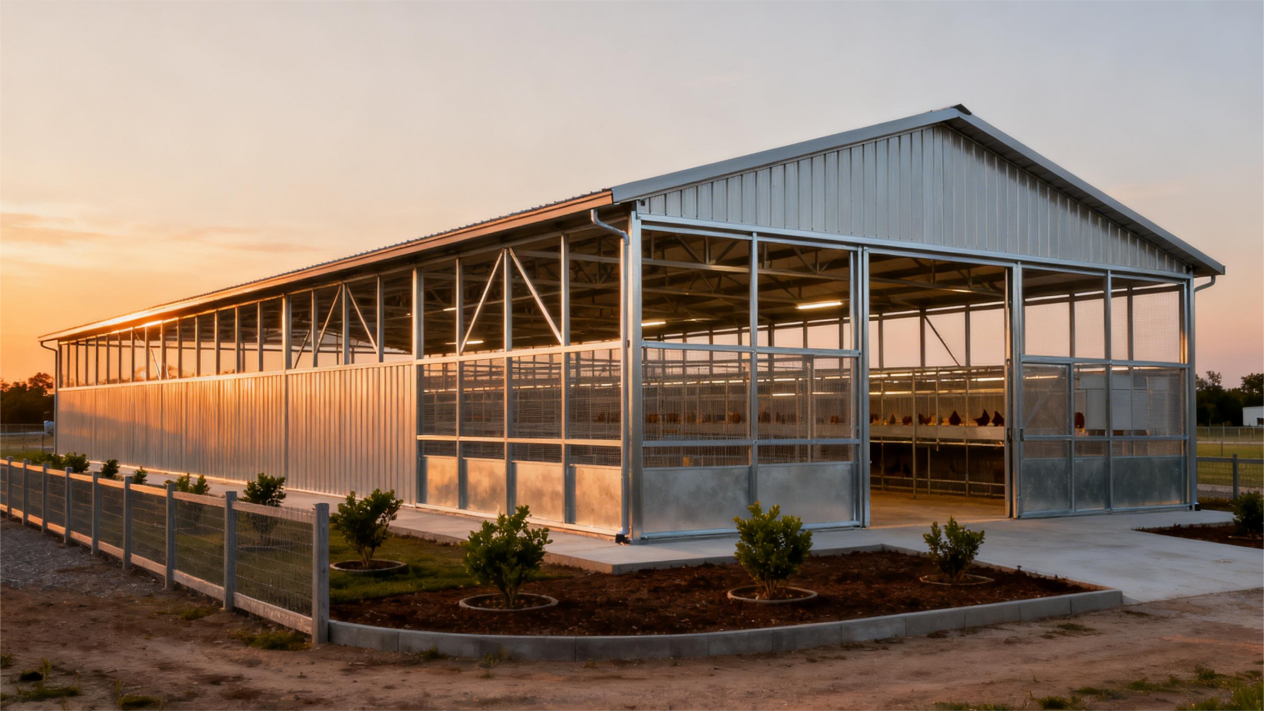

Brand name | Steel Structure Chicken House |
Model | 1.Single slope, Double slope, Multi-slope. |
2.Single span, Double-span, Multi-span, Single floor, Double floors. | |
Column and beam | 1.Q235B (A36/S235JR equivalent) & Q355B (A572 Grade 50/S355JR equivalent). |
2.All bolts connecting. | |
3.Straight cross-section or Variable cross-section. | |
Surface | Hot-dip galvanized or painted. |
Roof and wall panel | 1.EPS ,PU ,Rock wool sandwich panel. |
2.Single colorful corrugated steel sheet0.326~0.6mm thick, YX28-205-820(820mm wide). | |
3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thicknessaround 50mm~150mm, 950mm or 960mm width. | |
Brace | X or V as well as other type bracing made from angle, round pipe etc. |
Accessories | Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc. |
Window | PVC or Aluminum Alloy. |
C or Z purlin | Size from C120~C320, Z100~Z200. |
Door | Sliding or Rolling up door. |
Carrying capacity | 1.Resisting winds and seismic impacts. |
2.Bearing heavy snows. | |
Drawing | 1.Making the design and quotation according to your requirements very soon. |
2.Making the quotation according to your drawings. | |
3.Giving you the satisfying opinion to your projects | |
Certificate | ISO9001:2008,AWS certified welder passport,SGS,BV. |
Product Advantages
Structural Advantages
Hot-dip galvanized steel frame: Anti-corrosion, rust-proof, service life ≥15 years
Modular prefabrication: Quick on-site assembly, construction cycle shortened by 50%
Wind-resistant (≥Grade 10) & seismic: Stable in harsh weather (storms, earthquakes)
Breeding-Friendly Design
Temperature-controlled system: Adapt to -20℃~40℃, suitable for broilers/layers
Ventilation & moisture-proof: Reduces ammonia accumulation, prevents diseases
Easy-to-clean structure: Smooth surfaces + detachable waste trays, low maintenance
Practical Features
Customizable size: Span 8-20m, height 3-5m, fits small-large scale farms
Space-efficient layout: Maximizes breeding density, improves operational efficiency
Safe materials: Non-toxic, BPA-free, compliant with animal husbandry standards
Certification & Support
CE/ISO certified, meets global breeding regulations
One-stop service: Design, production, installation + after-sales consultation
Energy-saving: Insulated panels reduce heating/cooling costs by 30%
Customer Cases

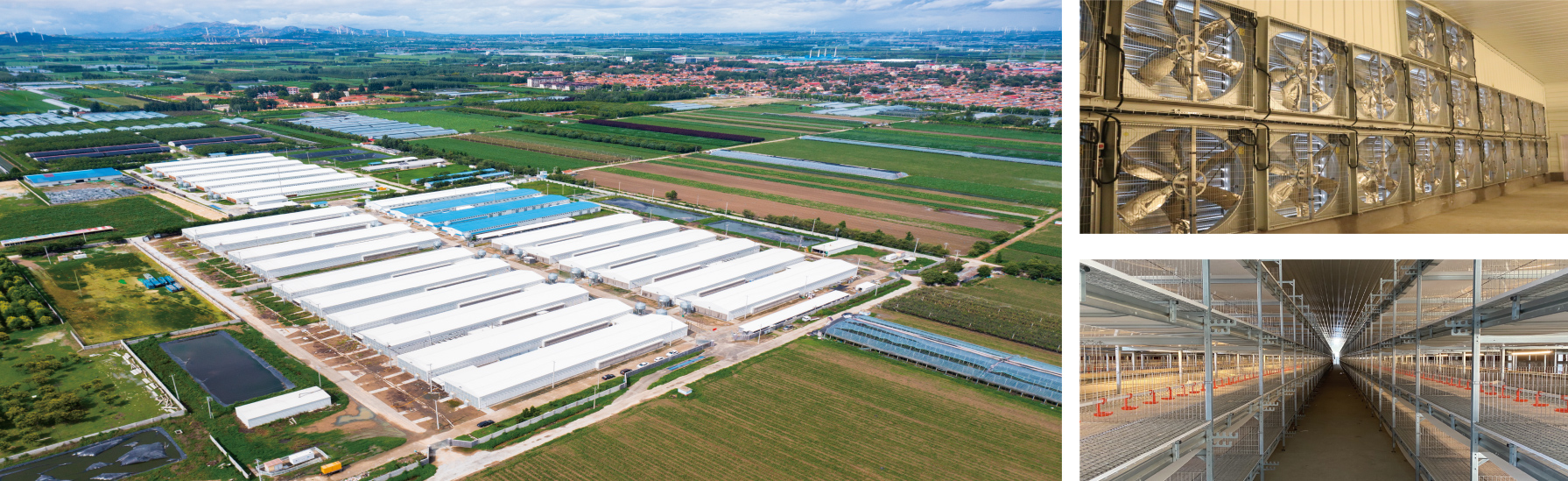

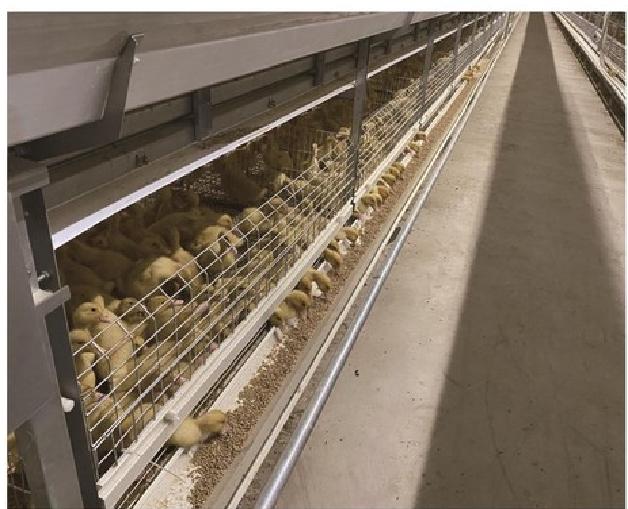

GEBEITOU INTELLIGENT FARMING DEMONSTRATION ZONE
Pingdu Gebeitou duck breeding demonstration area with a total investment of about 80 million yuan, covers an area of approximately 200 acres, has 27 standardized duck houses, and produces commercial duck about every year Eight million. The whole community adopts the whole house system of intelligent duck breeding, which increases the scale of unit land breeding to nearly four times that of traditional breeding Automatic feeding, drinking water, cleaning manure and automatic control of the breeding environment, while taking into account sufficient growth space for meat ducks.
