Company Equipment Upgrade Boosts Efficient Production, Empowering Industry Demands.

With the growing market demand for high-quality construction materials, Metal Company’s Production Plant II has introduced three advanced machines: the C/Z Combination Machine, V-980 Roof Panel Roll Forming Machine, and V-688 Floor Deck Roll Forming Machine. These machines not only enhance production capabilities but also meet diverse manufacturing needs. The newly introduced C/Z Combination Machine and V-980 Roll Forming Machine further strengthen the company’s capacity for large-scale, high-precision, and diversified production of color-coated sheets, empowering customers to achieve efficient, high-quality production goals. Below are detailed introductions, highlights, and core advantages of the equipment.

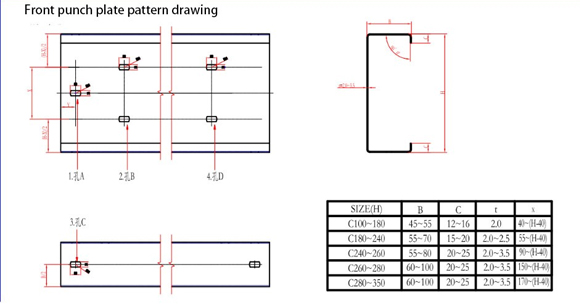

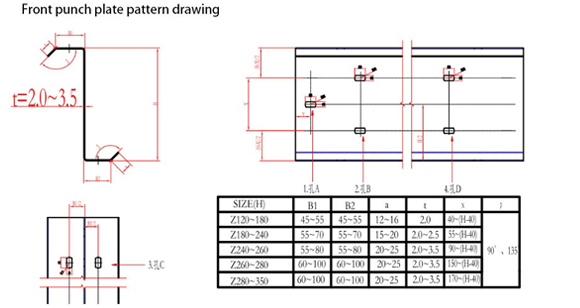

C/Z Combination Machine: A Benchmark for Large-Scale, High-Precision Processing

Processing Capabilities:

• Material thickness: 2.0mm–3.5mm

• Material width: 100mm–350mm

• Web height range: 80mm–100mm

Core Advantages:

Large-Size Compatibility: Supports one-time forming of extra-wide and extra-thick materials, reducing secondary processing costs.

High-Precision Forming: Equipped with an intelligent control system to ensure web height tolerance ≤ ±0.5mm, guaranteeing structural stability.

Efficient Scheduling: Daily output per machine increased by 30%, shortening project delivery cycles.

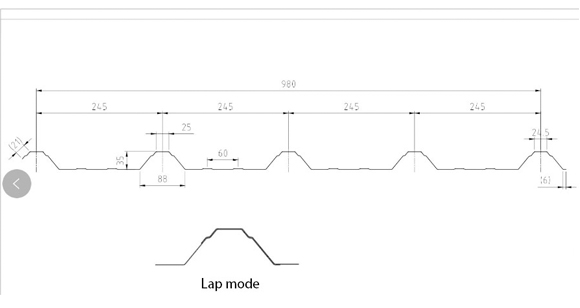

V-980 Roof Panel Roll Forming Machine: The Efficiency Expert for Color-Coated Sheets

Processing Capabilities:

• Material thickness: 0.4mm–0.8mm

• Expanded color-coated sheet width: 1200mm

Core Advantages:

Ultra-Wide Flattening Design: 1200mm width minimizes splicing waste and improves material utilization.

High-Precision Forming: Achieves ±0.2mm tolerance with scratch-free surfaces, ensuring coating integrity.

Flexible Production: Supports rapid switching between 0.4–0.8mm thicknesses to meet diverse client needs.

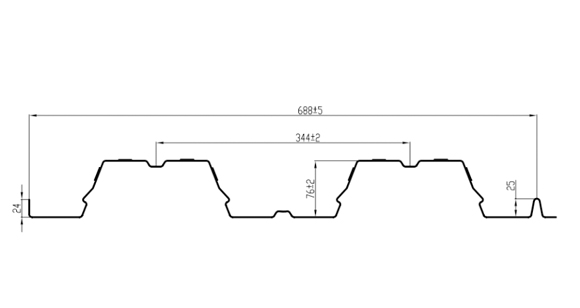

V-688 Floor Deck Roll Forming Machine

Processing Capabilities:

• Material thickness: 0.8mm–1.5mm

• Expanded color-coated sheet width: 1000mm

• Raised dimples enhance aesthetics and durability.

Core Advantages:

High Strength: Utilizes galvanized steel materials to boost durability and load-bearing capacity.

Versatile Applications: Suitable for diverse building structures, providing stable support and weight-bearing performance.

Cost Efficiency: Advanced production processes reduce costs while maintaining product quality.

This equipment upgrade underscores our commitment to innovation and customer-centric solutions, driving industry standards forward while addressing evolving market demands.
