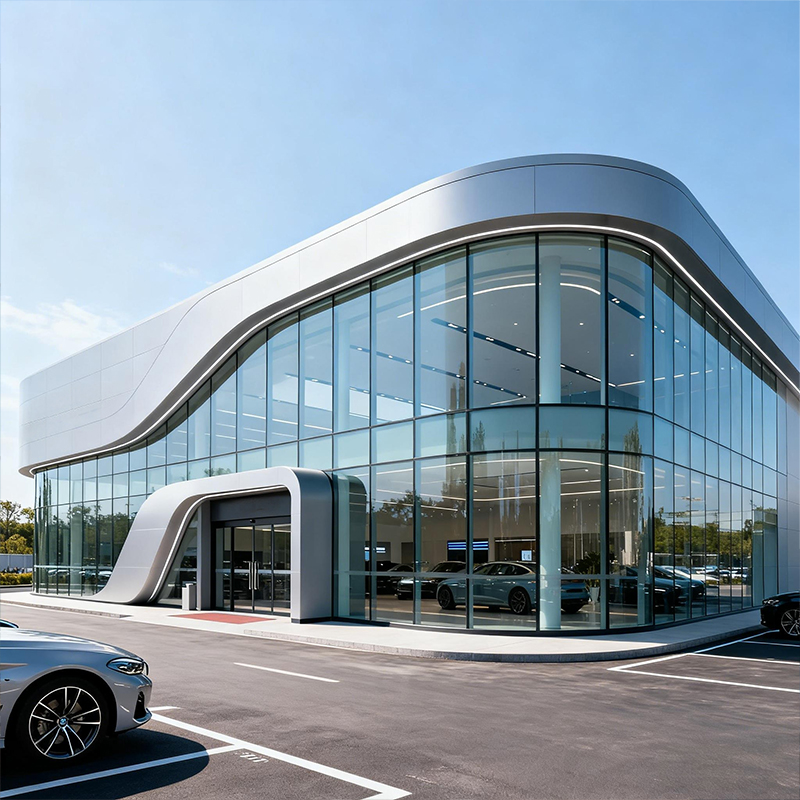

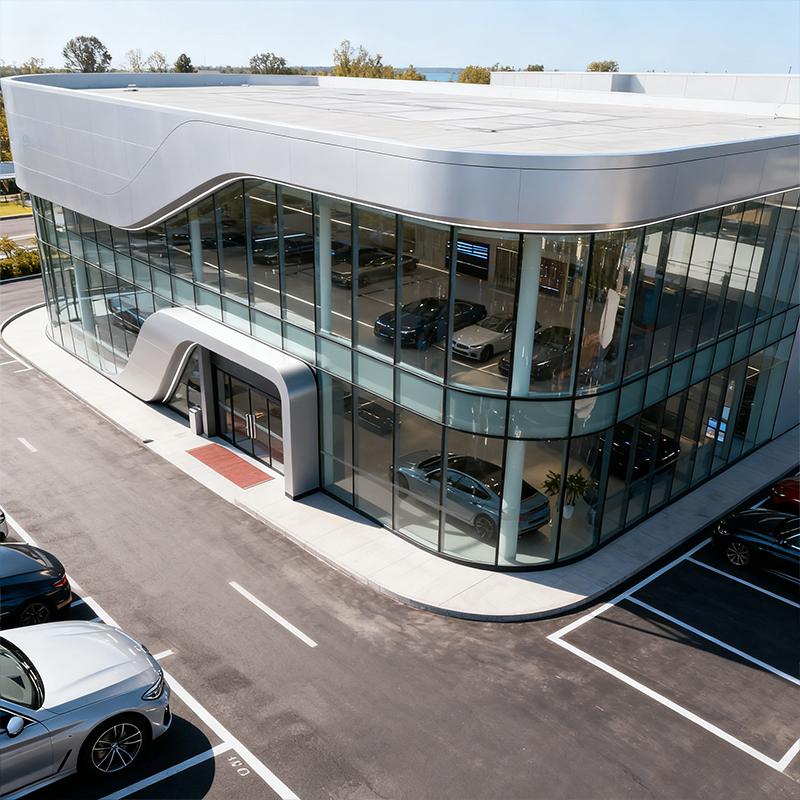

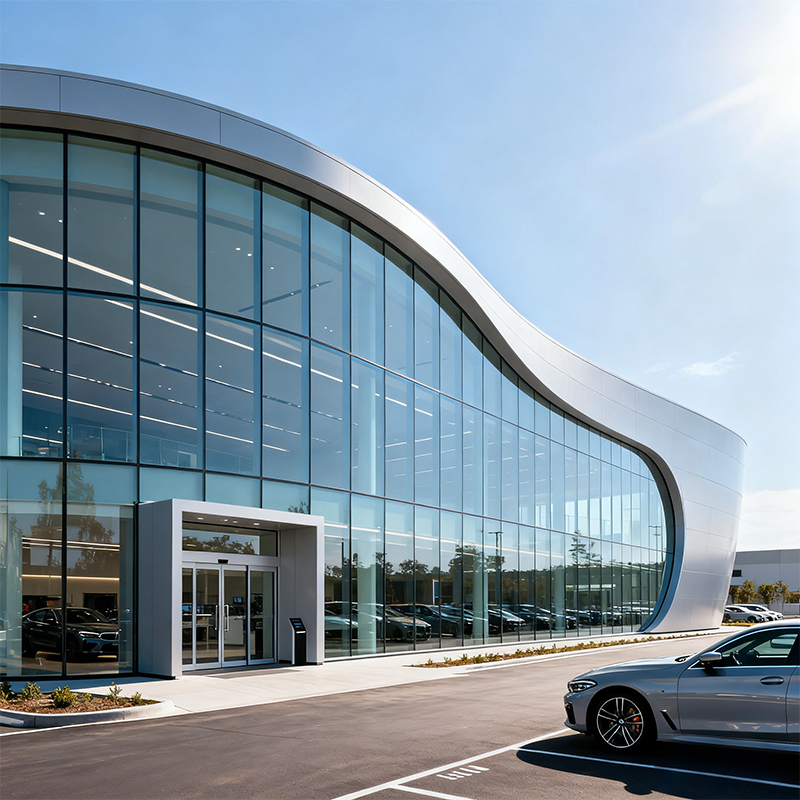

Flexible Space Steel Auto Showroom Display Hall

12-25m column-free span + adjustable partitions: for car displays, test drives & promotions
Q355B steel frame: ≥Grade 7 seismic, ≥Grade 11 wind-resistant, stable for heavy vehicles
Energy-saving & durable: insulation panels + hot-dip galvanizing, 30% lower HVAC cost, ≥15-year lifespan
70% prefabricated: 40% faster on-site assembly than traditional structures

Availability:

Quantity:



Inquire Add to Basket

Steel Structure 4S Shop Showroom Modular Steel Car Display Hall Auto 4S Showroom Steel Frame Car Exhibition Space Auto Steel Showroom Steel Car Showroom Anti-Corrosion 4S Steel Structure Brand-Focused Steel Auto Showroom

Technical Parameters

Product Advantages

Customer Cases

FAQ

Technical Parameters

Brand name	Steel Structure Auto Showroom
Model	1.Single slope, Double slope, Multi-slope.
Model	2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Q235B (A36/S235JR equivalent) & Q355B (A572 Grade 50/S355JR equivalent).
	2.All bolts connecting.
	3.Straight cross-section or Variable cross-section.
Surface	Hot-dip galvanized or painted.
Roof and wall panel	1.EPS ,PU ,Rock wool sandwich panel.
	2.Single colorful corrugated steel sheet0.326~0.6mm thick, YX28-205-820(820mm wide).
	3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thicknessaround 50mm~150mm, 950mm or 960mm width.
Brace	X or V as well as other type bracing made from angle, round pipe etc.
Accessories	Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window	PVC or Aluminum Alloy.
C or Z purlin	Size from C120~C320, Z100~Z200.
Door	Sliding or Rolling up door.
Carrying capacity	1.Resisting winds and seismic impacts.
Carrying capacity	2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
	2.Making the quotation according to your drawings.
	3.Giving you the satisfying opinion to your projects
Certificate	ISO9001:2008,AWS certified welder passport,SGS,BV.

Product Advantages

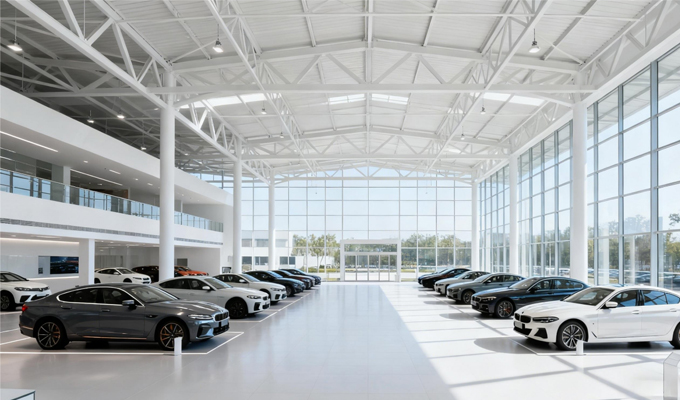

Flexible Space Design for Auto Displays

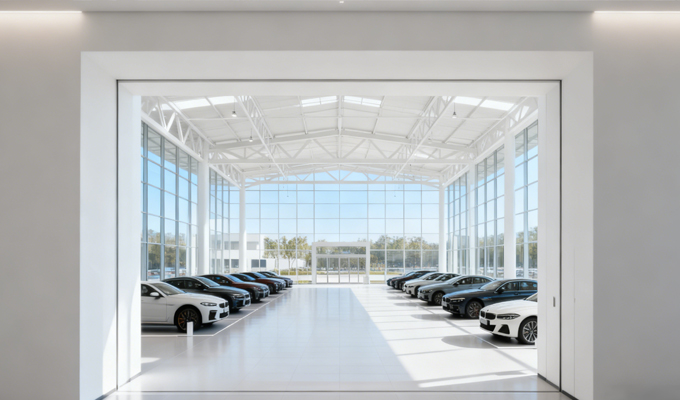

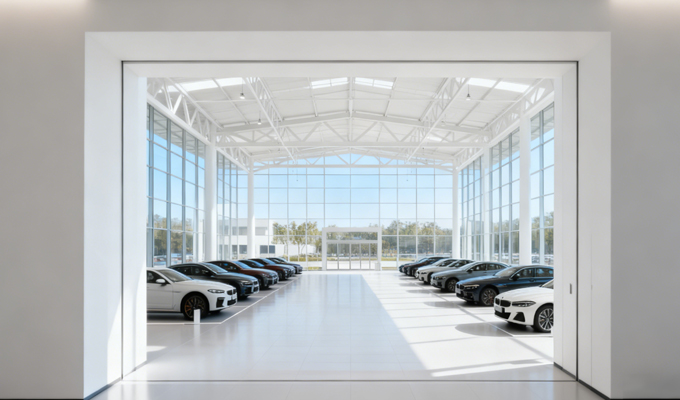

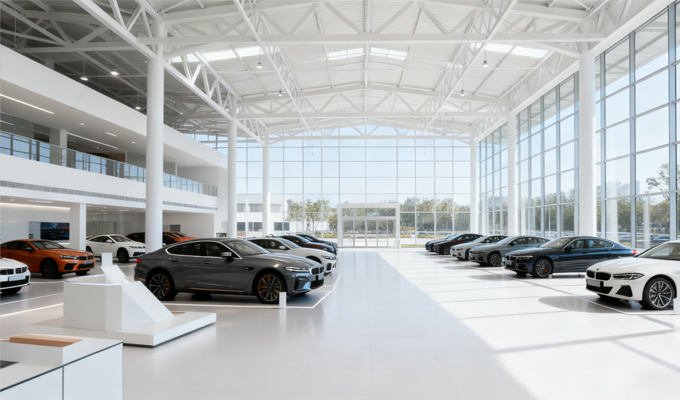

- Column-Free Span Layout: 12-25m clear span per floor, eliminating visual obstacles and allowing flexible arrangement of 8-15 vehicles (sedans/SUVs) or custom event setups.

- Adjustable Partitions: Detachable lightweight partitions support quick conversion between "full-display mode" and "theme-event mode" (e.g., new car launches, customer experience days).

- Functional Zone Integration: Pre-designed modules for reception desks, customer lounges, and accessory display areas, seamlessly connecting display and service functions.

Efficient Construction & Cost-Saving

- Prefabricated Modular Production: 70% of components (steel beams, columns, panels) are factory-manufactured, reducing on-site construction time by 40% compared to concrete structures.

- Energy-Saving Operation: Sandwich insulation panels with thermal conductivity ≤0.038W/(m·K) reduce air conditioning/heating costs by 30% annually.

Brand-Centric Customization

- Facade Personalization: Compatible with brand-specific materials (aluminum composite panels, colored glass) and large-scale LED screens for brand image display.

- Logo & Signage Integration: Reinforced mounting positions for 3D brand logos and illuminated signs, ensuring high visibility from the street.

- Smart System Adaptation: Reserved interfaces for digital display screens, customer management systems, and EV charging stations, supporting modern 4S store operations.

Compliance & Quality Assurance

- International Certifications: Complies with ISO 9001 quality management system and CE building product standards, meeting global auto dealership construction requirements.

- Fire Safety Standards: Uses flame-retardant insulation materials and fire-resistant steel coatings, reaching Grade B1 fire protection level.

- One-Stop Service Support: Provides full-process services from BIM design, component production to on-site installation, with 1-year after-sales warranty.

Customer Cases

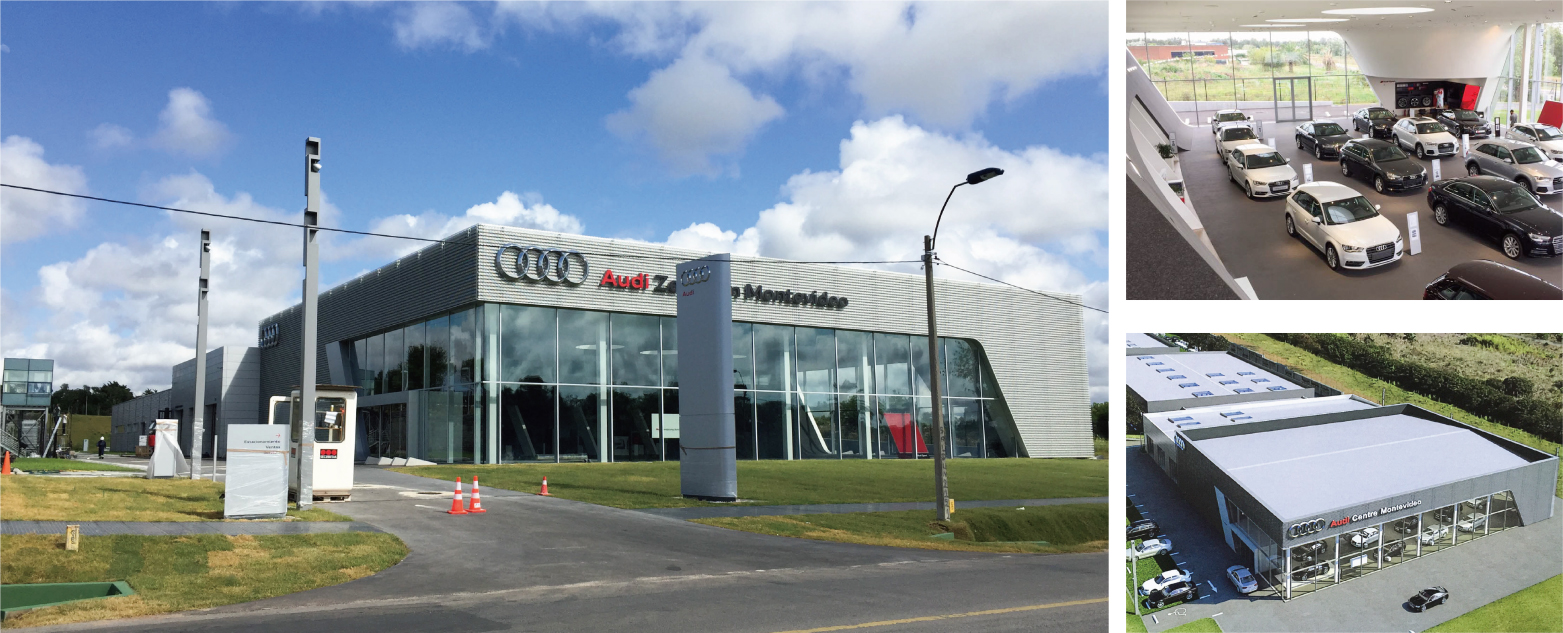

AUDI EXHIBITION HALL IN URUGUAY

The project building area is 4,587 square meters.lt contains exhibition hall and workshop, and is the first Audi 4S shop in Montevideo, the frame of the exhibition hall part is trussstructure, while that of the workshop is portal steel frame. The wall enclosure is made of 100mm thick PUcomposite panel and sandwich panel; the roof enclosure made of 100mm thick foam composite panel(weight of foam 20kg).
