Prefab Steel Structure Airport Terminal Building

Faster Construction: Prefabricated modules cut build time by 40%+ vs traditional methods
Cost-Effective: High material reusability reduces total costs by 15-20%
Superior Durability: Steel structure resists strong winds/quakes, meeting strict airport safety standards
Flexible Adaptation: Modular design enables easy future expansion or functional upgrades

Availability:

Quantity:



Inquire Add to Basket

Airport Steel Terminal Prefabricated Terminal Steel Frame Airport Terminal Prefab Steel Prefab Steel Terminal Building Prefabricated Steel Building Prefab Steel Airport Terminal Prefab Transit Hub Steel Structure

Core Product Positioning

Core Advantages

Technical Parameters

Customer Cases

FAQ

Core Product Positioning

Tailored for international/regional/feeder airports

Solves pain points of traditional terminals: long construction cycles, difficult large-span space, high operation costs
Applicable to annual passenger throughput of 500,000–10 million
Covers full functions: check-in, security inspection, waiting, transfer

Core Advantages

85% core components (steel columns/beams/trusses) factory-produced, precision ±2mm;

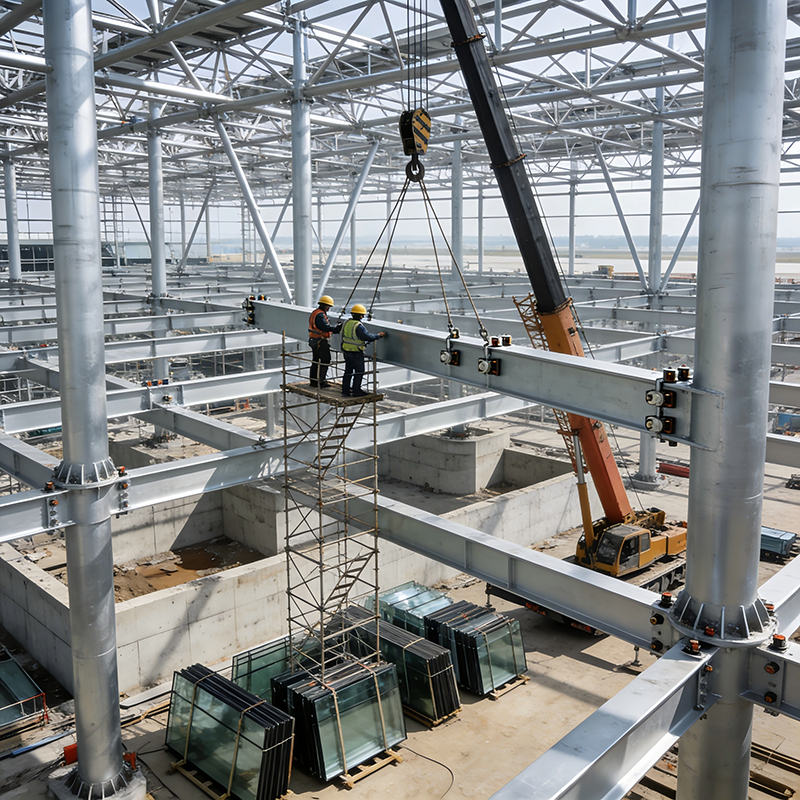

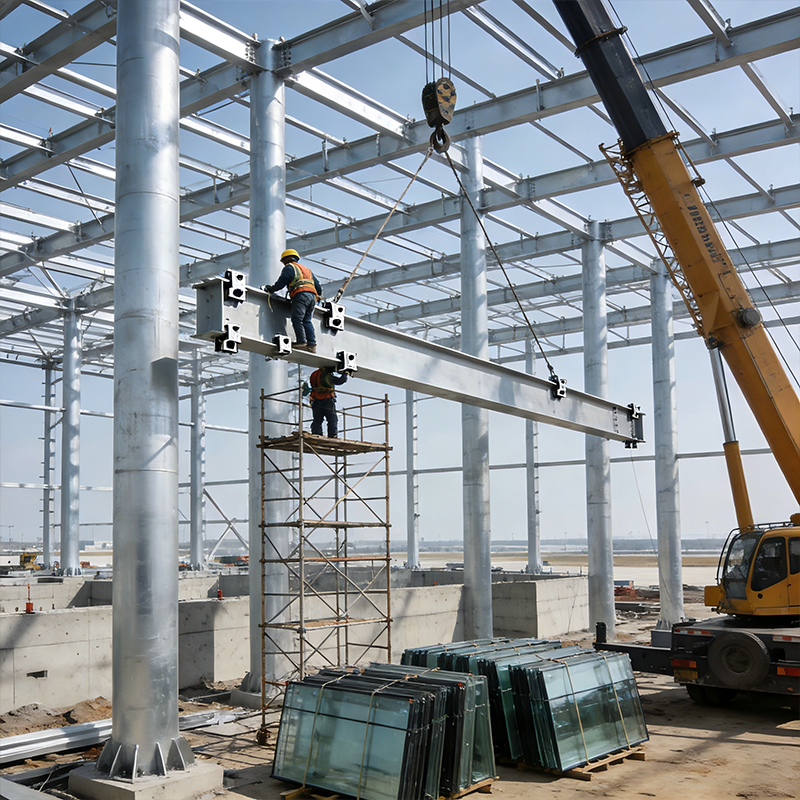

On-site assembly via bolts/modular splicing: 60–90 days for 15,000㎡ terminal (40%–50% shorter than concrete structures);
Unaffected by seasons/weather, lower labor & safety risks.

Prefabricated Construction
Single-span 30–60m (column-free), suitable for open halls/waiting areas;
Q355B/Q460 high-strength steel: bears snow load (≤0.7kN/㎡) & wind load (≤0.6kN/㎡);
Seismic grade ≥ Grade 8, wind resistance ≥ Grade 12 (fits typhoon/seismic zones).

Large-Span & High Load-Bearing
100% recyclable steel; insulation panels + Low-E glass (25% lower AC energy consumption);
Roof reserves solar panel interfaces; natural lighting cuts 40% daytime lighting energy;
Double anti-corrosion (fluorocarbon spraying + hot-dip galvanizing): ≥20-year life, 60% lower annual maintenance costs.

Energy Saving & Low Maintenance
Custom modules: check-in/security/waiting/transfer/commercial areas (supports later expansion);
Regional cultural designs (curved roofs, folded curtain walls) for coastal/plateau airports;
Complies with ISO 9001 & AISC standards (fits overseas projects).

Flexible Customization

Technical Parameters

Parameter Category	Standard Specifications	Customization Scope
Applicable Airport Throughput	Annual passenger volume: 500,000–10 million	Feeder airports (00) – International hubs (>10 million)
Main Steel Material	Q355B / Q460 high-strength steel	Q235B–Q690 (adjusted by load-bearing demands)
Single-Span Width	30–60m (column-free design)	15–80m (special engineering for ultra-large spans)
Building Floors	1–3 floors (with underground equipment layer)	1–5 floors (based on site space & functional needs)
Prefabrication Rate	≥85% (core structural components)	70%–95% (flexible per on-site construction conditions)
Anti-Corrosion Duration	≥20 years (double-layer protection)	≥25 years (upgraded anti-corrosion coating)
Seismic Resistance Level	≥Grade 8 (seismic design code compliant)	Grade 8–9 (adjusted by regional seismic intensity)
Wind Resistance Level	≥Grade 12 (wind load standard compliant)	Customized by regional wind load requirements (e.g., typhoon-prone areas)

Customer Cases

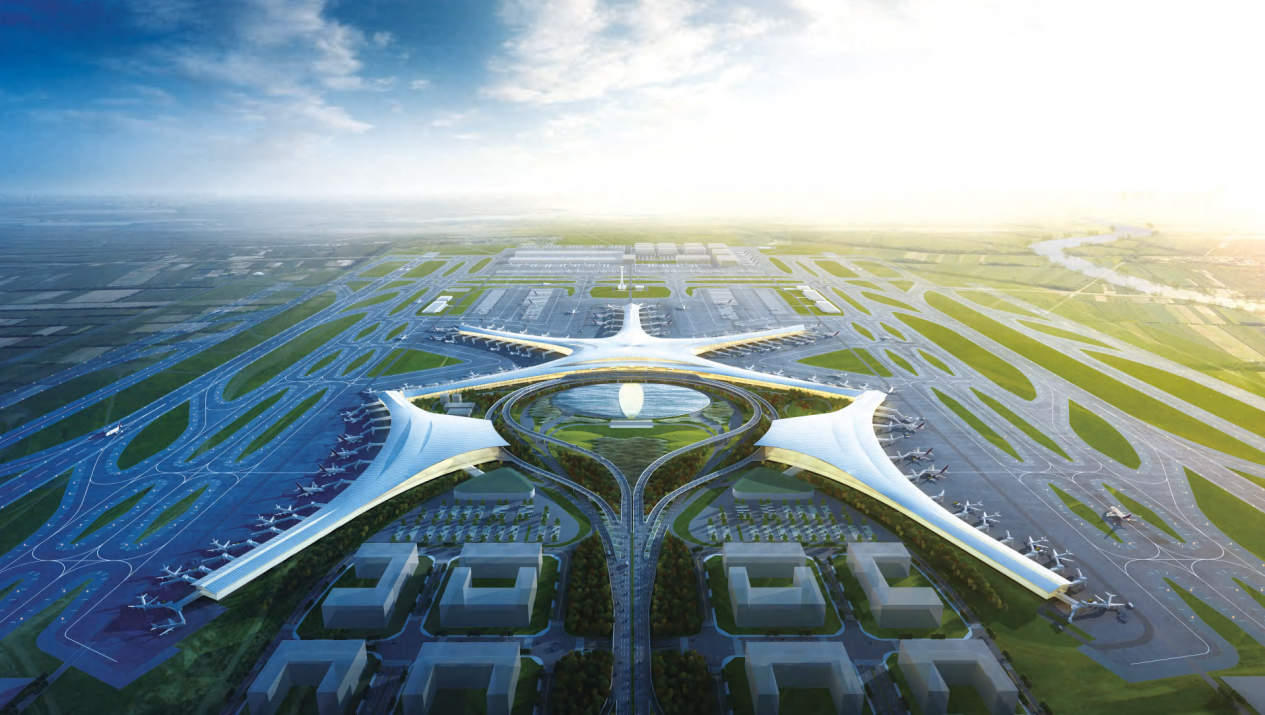

Jiaodong International Airport (Comprehensive Transportation Center and Parking Building) project adopts open-cut construction method. The buried depth of the structure is about 2.5m, the wrapping surface of the wall is about 3.5m*0.85m. Each steel tube column is made of 25mm or 16mm thick steel plate coil. And it is 30 meters high and weighs about 20 tons. It is transported to the construction site in sections of 17m+13m. The total amount of steel used in the project is about 1,500 tons.

FAQ

Q: Are you a manufacture factory or trading company?

A: We are manufacture factory, you are always welcomed to visit us for inspection. The quality controlled flow will show you our professionalism, you will enjoy the best quality and competitive price.

Q: Whats the quality assurance you provided and how do you control quality ?
A: We establish a procedure to check products at all stages of the manufacturing process - from raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us.

Q: Can you offer designing service?
A: Yes, we have excellent design team more than 80 engineers, we could design full solution drawings according to your requirments.

Q: What can you do when there is problem to install?

A: Usually we will send you the detailed installation drawing and video, we can provide the installation service, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas. We also have professional construction team, they will help you to install the steel structure building if you need.
