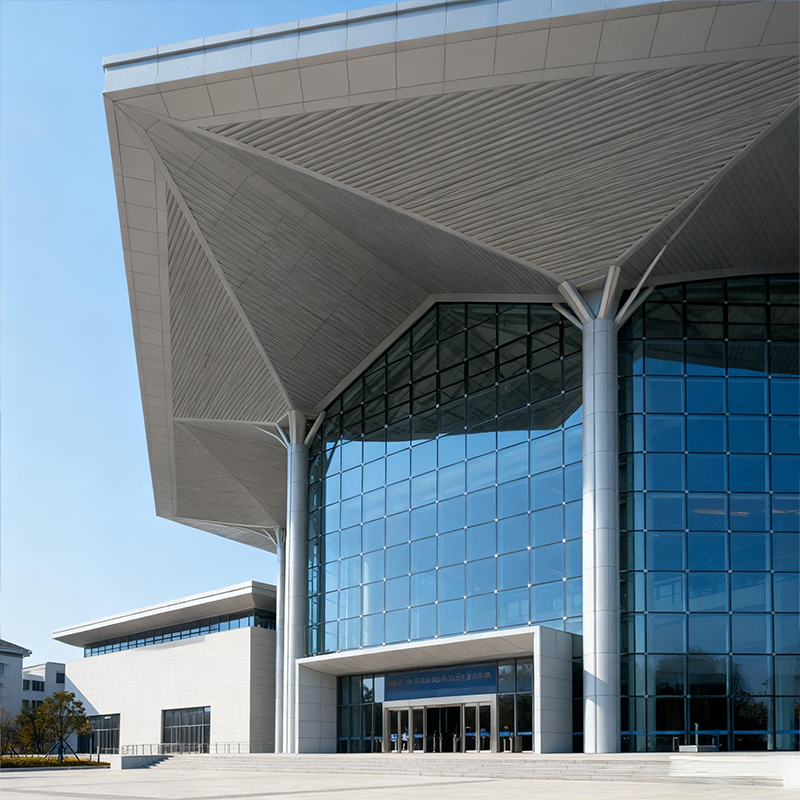

Heavy-Duty Energy-Saving Steel Exhibition Center

High-strength steel: ≥500kg/㎡ load-bearing, for large exhibits/stages/crowds
Energy-saving: Insulation panels + natural light, 35% less HVAC consumption
80% prefabricated: 40% shorter on-site assembly cycle
Eco-friendly: 100% recyclable steel, 50% lower carbon footprint (LEED compliant)
Certified: ISO 9001, CE, green building standards

Availability:

Quantity:



Inquire Add to Basket

Steel Exhibition Center Steel Convention Hall Steel Exhibition Building Eco-Friendly Steel Convention Center Heavy-Duty Exhibition Center Modern Steel Exhibition Building Anti-Corrosion Steel Convention Hall Steel Frame Convention Center Energy-Saving Steel Convention Hall

Design & Production

Technical Parameters

Customer Cases

FAQ

Design & Production

Utilize professional software like AutoCAD, Tekla Structures, and 3D3S for precise design. Focus on structural integrity, material efficiency, and compliance with industry standards to ensure safe and cost-effective steel structure products.

Production Process：

Technical Parameters

Brand name	Steel Structure Exhibition Center
Model	1.Single slope, Double slope, Multi-slope.
Model	2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Q235B (A36/S235JR equivalent) & Q355B (A572 Grade 50/S355JR equivalent).
	2.All bolts connecting.
	3.Straight cross-section or Variable cross-section.
Surface	Hot-dip galvanized or painted.
Roof and wall panel	1.EPS ,PU ,Rock wool sandwich panel.
	2.Single colorful corrugated steel sheet0.326~0.6mm thick, YX28-205-820(820mm wide).
	3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thicknessaround 50mm~150mm, 950mm or 960mm width.
Brace	X or V as well as other type bracing made from angle, round pipe etc.
Accessories	Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window	PVC or Aluminum Alloy.
C or Z purlin	Size from C120~C320, Z100~Z200.
Door	Sliding or Rolling up door.
Carrying capacity	1.Resisting winds and seismic impacts.
Carrying capacity	2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
	2.Making the quotation according to your drawings.
	3.Giving you the satisfying opinion to your projects
Certificate	ISO9001:2008,AWS certified welder passport,SGS,BV.

Customer Cases

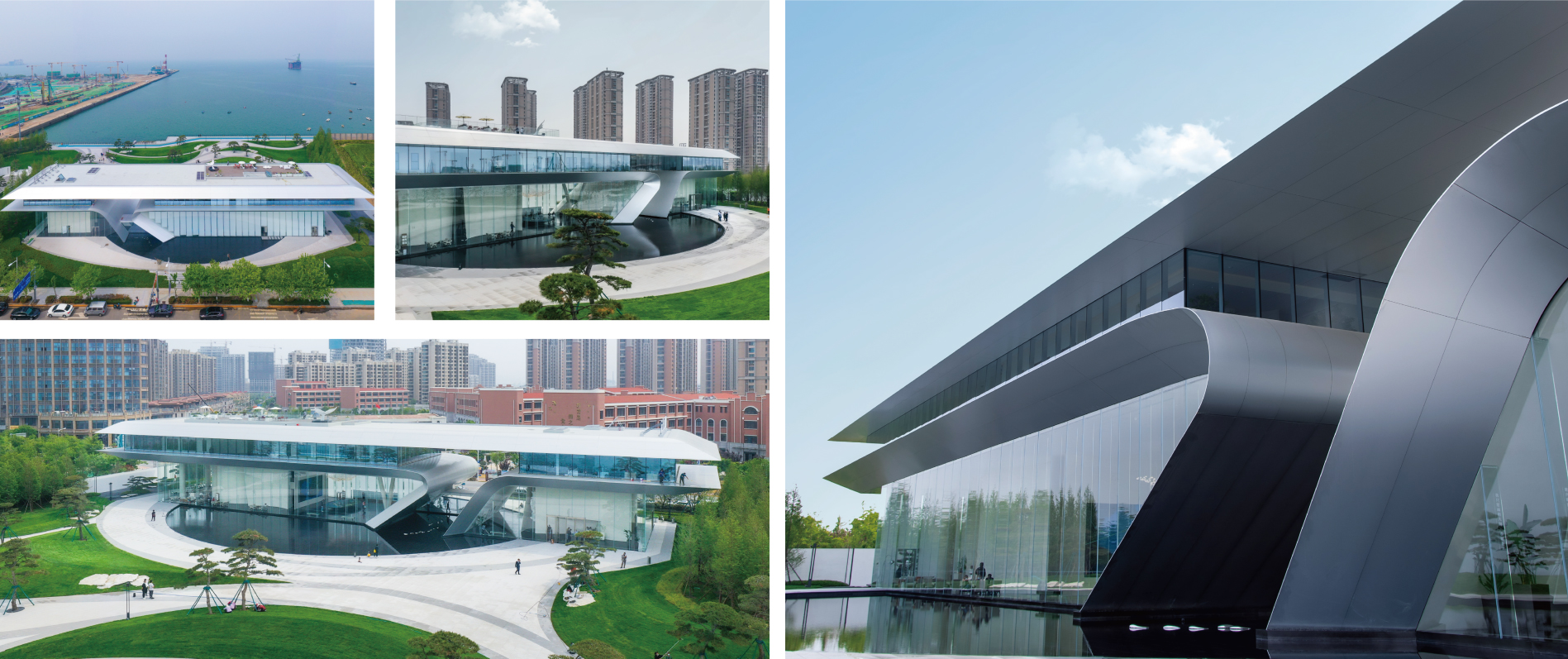

YUN SHANG GUAN HAI

The project is located in the Shibei District of Qingdao City. It is a special-shaped steel frame structure with a height of 14.4 meters and a length of 42 meters (the longest steel beam span is 24 meters). The frame is surrounded by cantilever structures Another unique shape of the north of Qingdao new landmark.

GUAMGMING CONFERENCE CENTER OF CHINA FLOWER EXPO

The China Flower Expo Bright Convention Center project, situated at Dongfeng Farm in Chongming District, Shanghai, covers approximately 2,000 square meters and features a steel-wood hybrid structural design. The main steel framework, undertaken by Xin Guangzheng, employs a tubular truss structure for fabrication and installation, specifically designed to host conferences and press events during the floral exposition, combining structural durability with functional adaptability for large-scale international horticultural exhibitions.

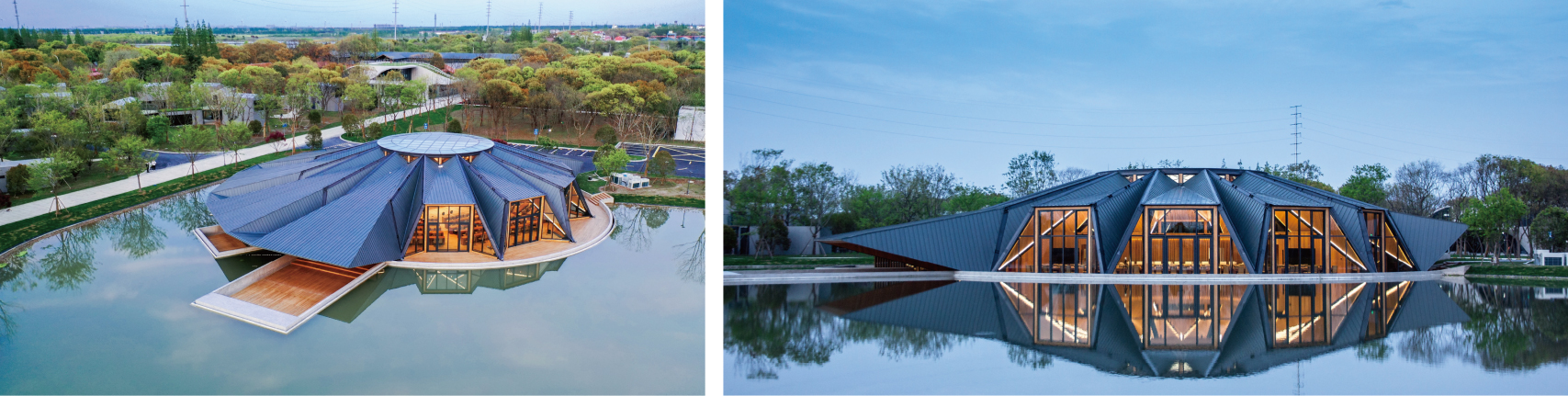

ETHIOPIA CONVENTION CENTER

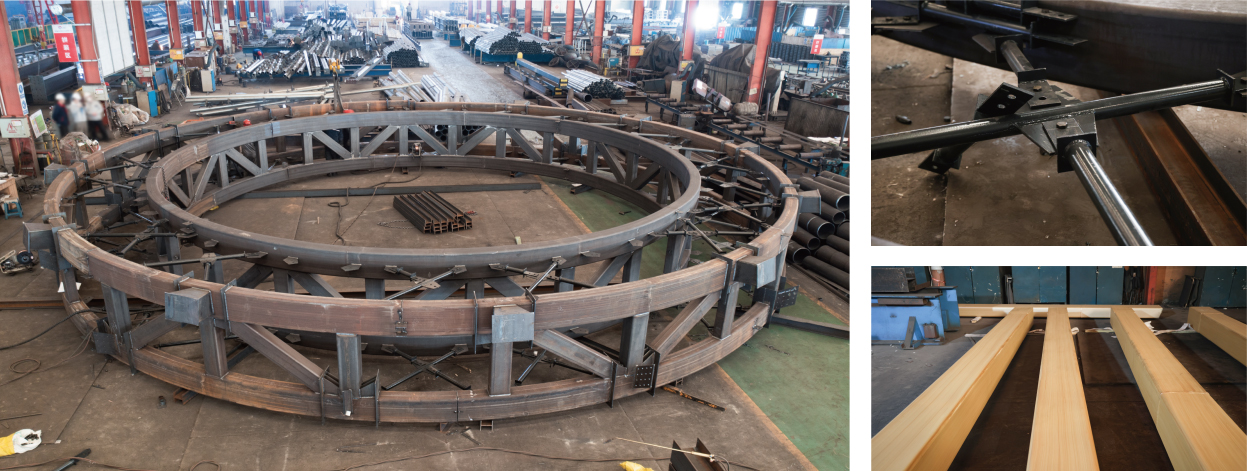

The project as a whole is a complex three-dimensional curved surface modeling, covering an area of more than 2,200 square meters, the top elevation of 8.9 meters, the height of the eaves structure of 4 meters, the total amount of steel structure 200 tons. Its core design highlight is a 14-meter diameter ring daylighting roof, extending outward through a spiral radial layout, with a maximum radius of 28 meters.The inner and outer ring structure adopts rectangular square pipe bending technology, in which the outer ring is precisely spliced into a circle by 8 custom-made curved steel beams, and the center ring adopts hot bending technology to achieve high-precision curved surface modeling.
